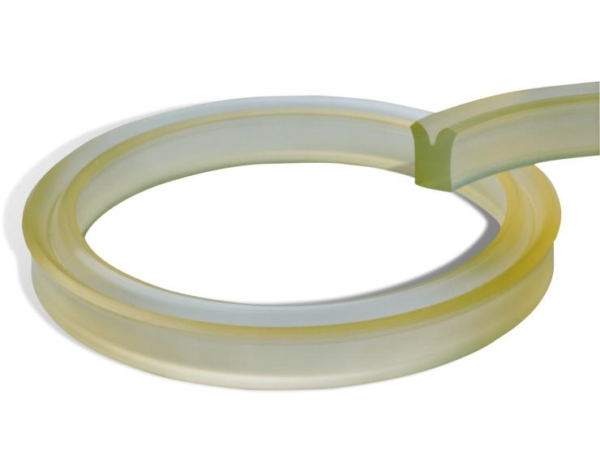

9220 GARTHANE® U-Seals
The GARTHANE® 9220 U-Seal is a tough urethane seal with excellent tear and abrasion resistance.
Garlock GARTHANE® 9220 U-Seals have four times the tensile strength and tear resistance of conventional seals and can withstand shocks over a wide range of temperatures, chemicals, and pressures. They also demonstrate outstanding endurance under difficult operating conditions. These seals are ideal for plungers, pistons, rams, and rods.
- Description
- Характеристики
Description
Increased seal life and performances
Eliminates chance of costly premature equipment failure
90 Durometer Urethane – High tensile strength and tear resistance
Reverse bevel lip design – Less friction and responds immediately to pressure
Balanced Design – Can function as a rod or piston seal
Extensive tooling list – Greater size availability-both inch and metric
Four times the tensile strength/tear resistance of conventional seals
High modulus counteracts extrusion and shear forces
Withstands shocks over a wide range of temperatures and pressures
Exceptional abrasion resistance
Outstanding endurance under difficult operating conditions
Excellent elasticity and resilience
Withstands high degree of deformation
Excellent for use against petroleum based fluids to 225°F / 107°C; air, warm water, and water glycol to 180°F / 82°C
Max. Temperature: 180°F / 82°C
Max. Pressure: 3500 psi / 242 bar
Min Shaft: 0.188 in. / 4.78 mm
Max Shaft: 36 in. / 91.44 cm
