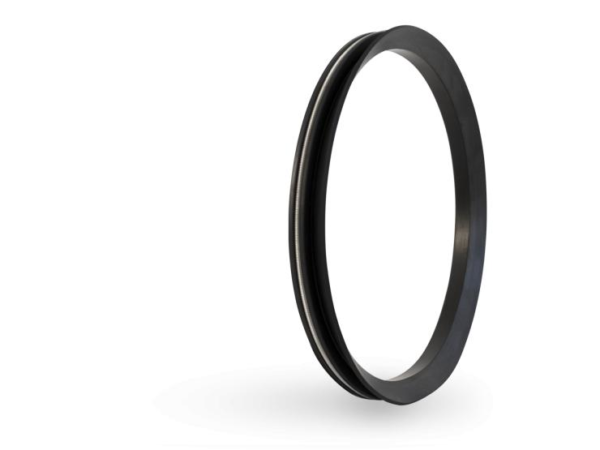

Model 145A2 Excluder Seal
Model 145A2 is a solid design face-type excluder seal designed for 0.781 ±0.156″ (19.8 ±3.9 mm) assembled width.
- Description
- Характеристики
Description
- High-speed service
- Designed for 0.781 +/- 0.156in (19.8 +/- 3.9 mm) assembled width.
- Minimum Shaft Diameter: 7.000 in. / 177.8 mm
- Maximum Shaft Diameter: 80.000 in. / 2032.0 mm
- Surface Speed: 5,000 fpm / 25.4 m/s
- Width: 0.781 in. / 19.8 mm
- Cross Section: 0.656 in. / 16.7 mm
- Spring Configuration: Stainless steel garter spring
- Material Options: NBR, HNBR, and FKM
