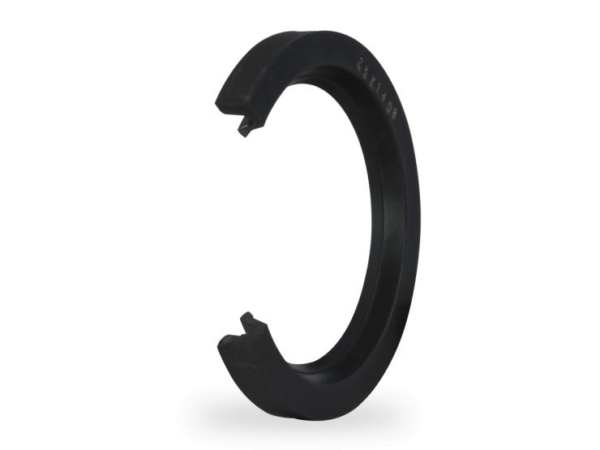

Model 23 General Purpose Split Seal
The KLOZURE® Model 23 is designed to be a highly versatile solution to address immediate needs in rotating equipment. Its versatility comes from the split design that allows for seal replacement without the time and expense of tearing down equipment, and from its wide range of available materials.
- Description
- Характеристики
Description
- Cover plate required
- Over 300,000 sizes readily available
- Minimum Shaft Diameter: 3.000 in. / 76.2 mm
- Maximum Shaft Diameter: 120.000 in. / 3048.0 mm
- Spring Configuration: Molded-in Stainless Steel Finger
- Material Options: Mill-Right N, Mill-Right ES and Mill-Right V
Misalignment & Runout
Units: in @ fpm / mm @ m/s
- .010 @ 1,000 / .25 @ 5.1
- .005 @ 2,000 / .13 @ 10.2
