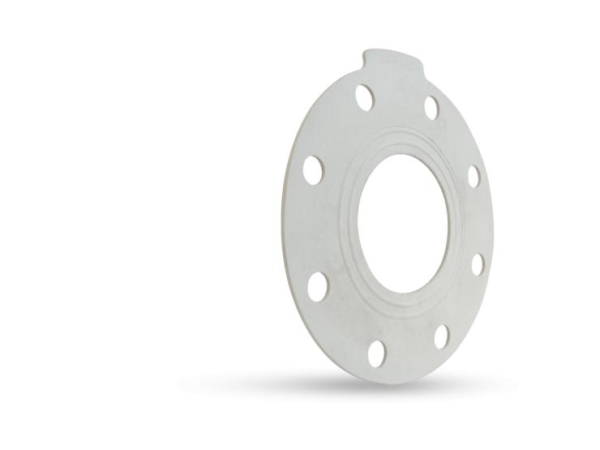

STRESS SAVER® 6800 Gaskets
The STRESS SAVER® 6800 provides an economical solution for applications where a PTFE envelope is not required.
- Description
- Характеристики
Description
- More economical gasket where a PTFE envelope is not required
- Raised, molded-in sealing rings seal with 75% less surface area for high performance in non-metallic flanges (Flat face flanges strongly recommended)
- Min. Temperature: -40°F / -40°C
- Max. Temperature: 300°F / 149°C
- Max. Pressure: 250 PSI / 17 bar
- Maximum PxT 1/8: 50,000 (°F x PSIG) / 1,717 (°C x bar)
APPLICATIONS
- Water service
- Very mild acids and caustics
ADDITIONAL INFORMATION
Meets FDA specifications
