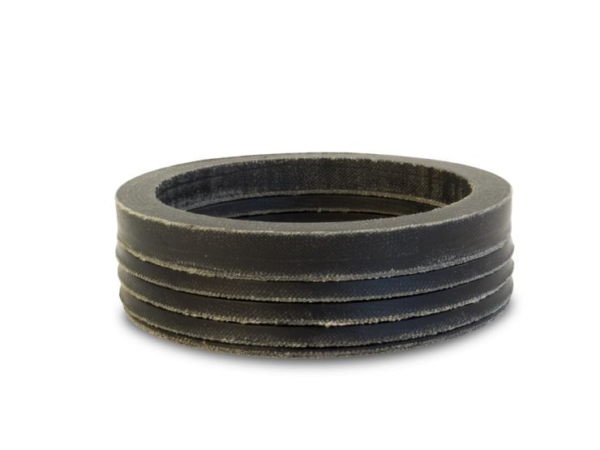

Style 435 (Nitrile/Cotton)
Style 435 offers a variety of custom design options that can be used to overcome the typical problems experienced with stuffing box applications. It is ideal for lower pressure general service applications.
- Description
- Характеристики
Description
- Easier installation; fewer rings required
- Quicker turnaround; rings won’t «roll-over» during installation
- Wide variety of styles; choose from many popular fabric and rubber styles
- Made in our continuous process, so large diameters are no problem
- Most popular cross sections are: 5/8″ (15.9 mm), 3/4″ (19.05 mm), 7/8″ (22.2 mm), 1″ (25.4 mm)
- Good heat resistance
- Good abrasion resistance
- Min. Temperature: -40°F / -40°C
- Max. Temperature: 275°F / 135°C
- Max. Pressure: 3000 psi / 137.9 bar
- Min. Shaft: 0.25 in. / 6.35 mm
- Max. Shaft: 90 in. / 2.3 m
APPLICATIONS
- High Pressure Service
- Air
- Aliphatic solutions
- Hydrocarbons
- Water glycol
- Water in oil
